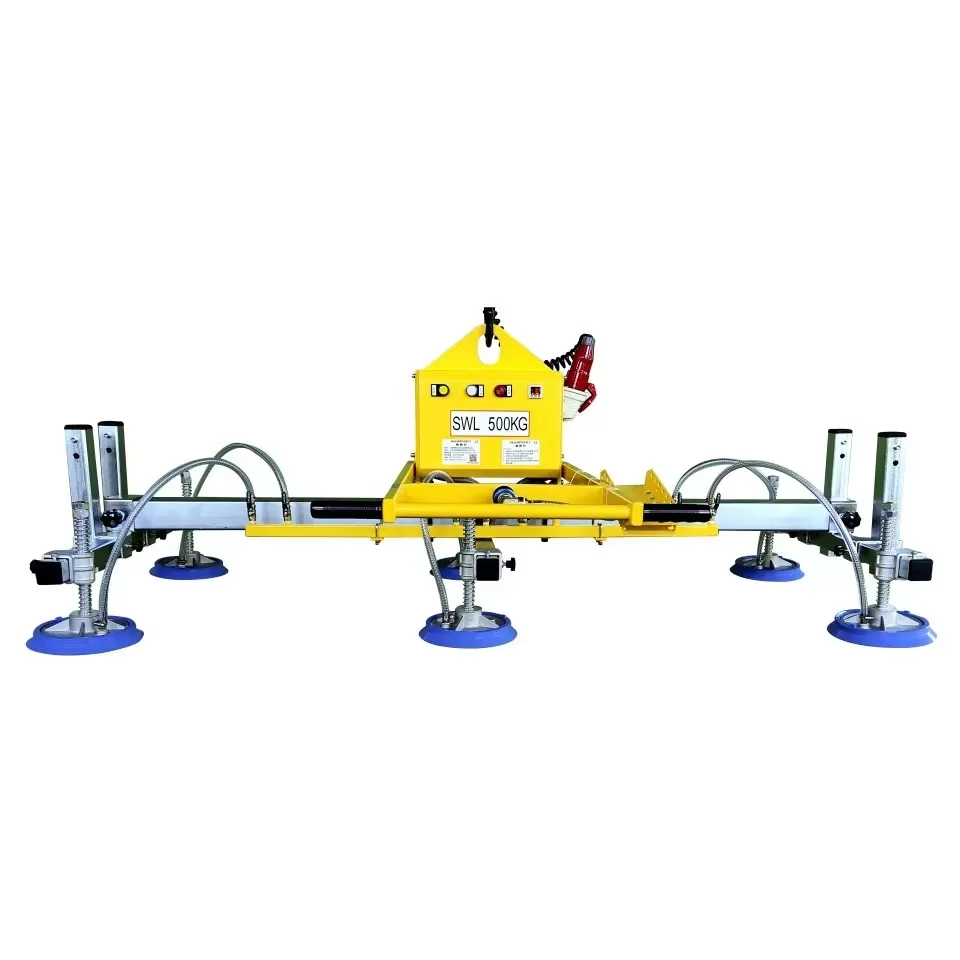

Glass Vacuum Lifter

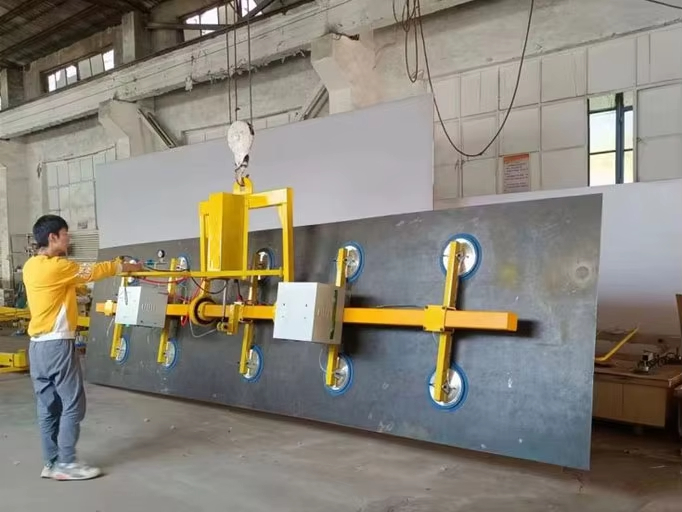

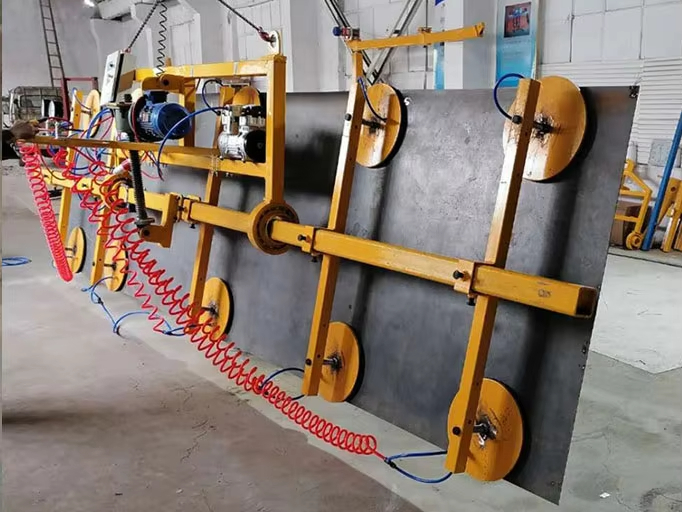

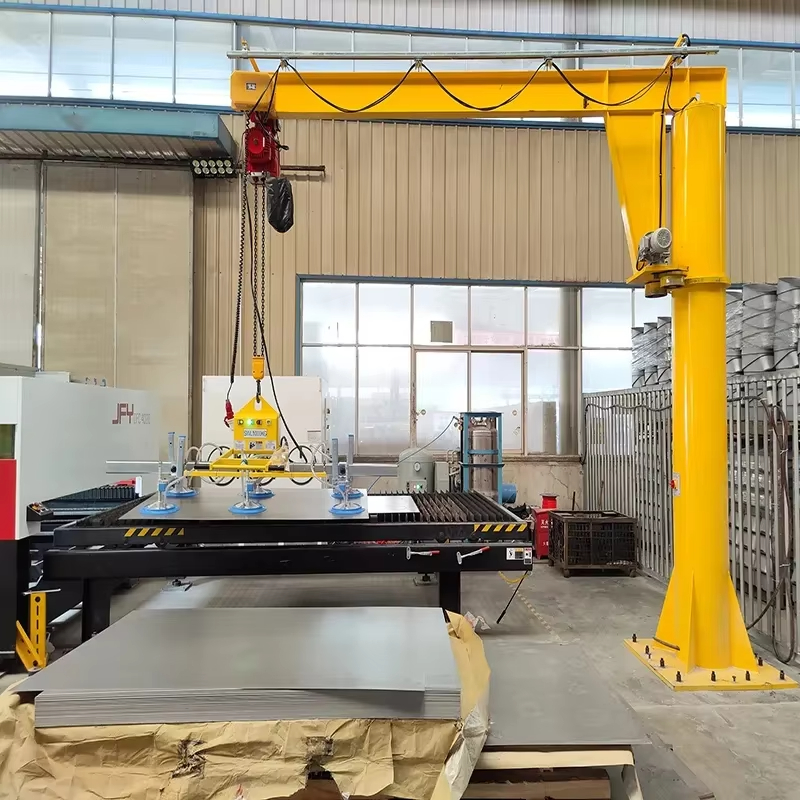

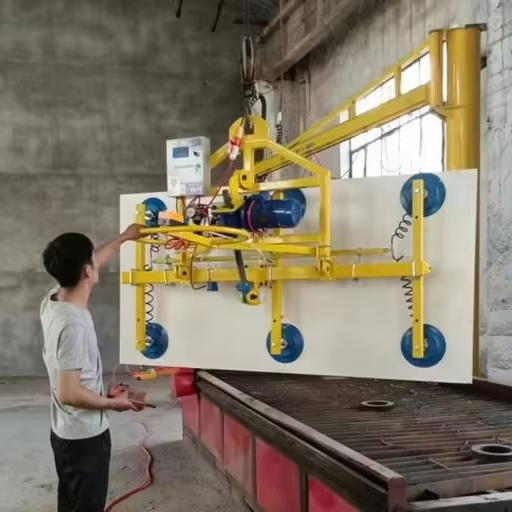

Used for handling and transporting large and heavy metal sheet in the factory and construction sites
Electrical gripping device use suction cups and vacuum system to achieve plates suction and release
Optional powers with DC battery-group, AC electricity, or dual power (AC main power, DC backup)
vacuum lifters is suitable for sheet metal, stainless steel, aluminum and non-ferrous materials, which is equipped with a series of vacuum monitoring systems to ensure maximum safety.
Glass Vacuum Lifter
|
Working Load Limit (WLL)
|
300 kg
|
|
Suction Pad
|
4 pieces, silicone material, 250mm diameter
|
|
Max. glass sizes
|
Depending on glass thickness up to 3000*2000 mm
|
|
Lifting / lowering
|
Air cylinder, pneumatically
|
|
Suction frame movements
|
Rotating 90°, pneumatically
|
|
Suction frame
|
Rectangular, with/without telescopic extensions
|
|
Vacuum generation
|
Vacuum generator with non-return valve, with/without automatic energy saving
|
|
Energy supply
|
Compressed air 6-8 bar
|
